N-Queens Problem

One of the most common examples of the backtracking is to arrange N queens on an NxN chessboard such that no queen can strike down any other queen. A queen can attack horizontally, vertically, or diagonally. The solution to this problem is also attempted in a similar way. We first place the first queen anywhere arbitrarily and then place the next queen in any of the safe places. We continue this process until the number of unplaced queens becomes zero (a solution is found) or no safe place is left. If no safe place is left, then we change the position of the previously placed queen.

NxN chessboard with N Queens

The above picture shows an NxN chessboard and we have to place N queens on it. So, we will start by placing the first queen.

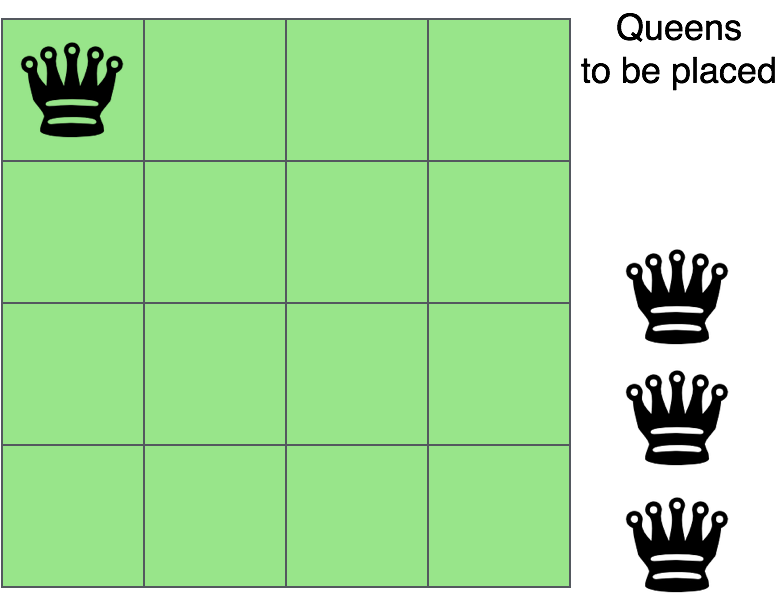

First queen placed on the chessboard

Now, the second step is to place the second queen in a safe position and then the third queen.

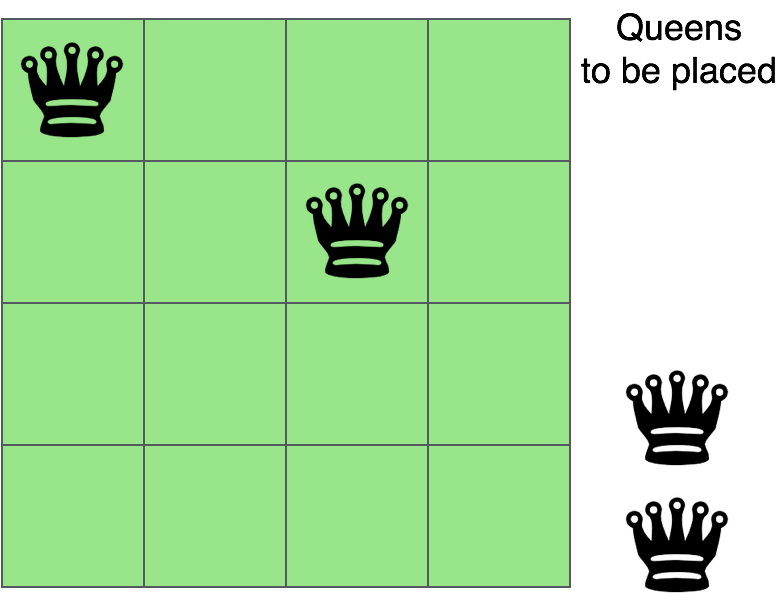

Second queen on chessboard

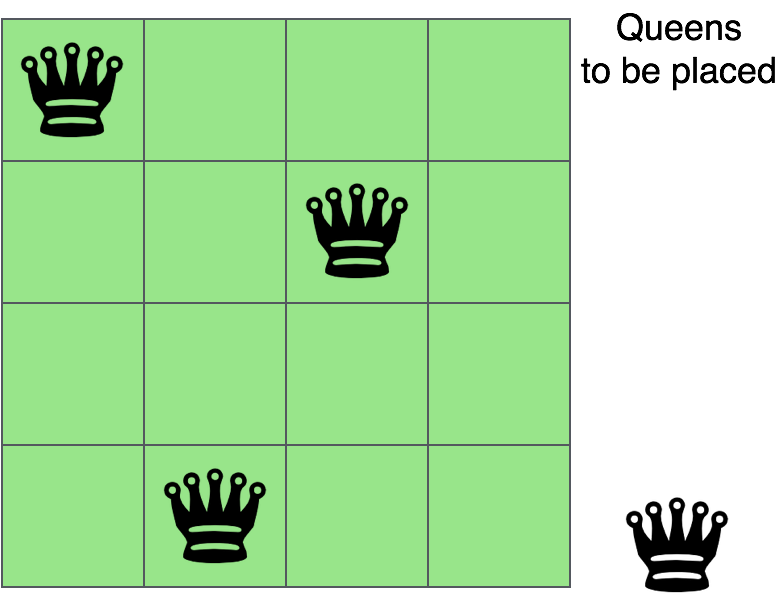

third queen on chessboard

Now, you can see that there is no safe place where we can put the last queen. So, we will just change the position of the previous queen. And this is backtracking.

Also, there is no other position where we can place the third queen so we will go back one more step and change the position of the second queen.

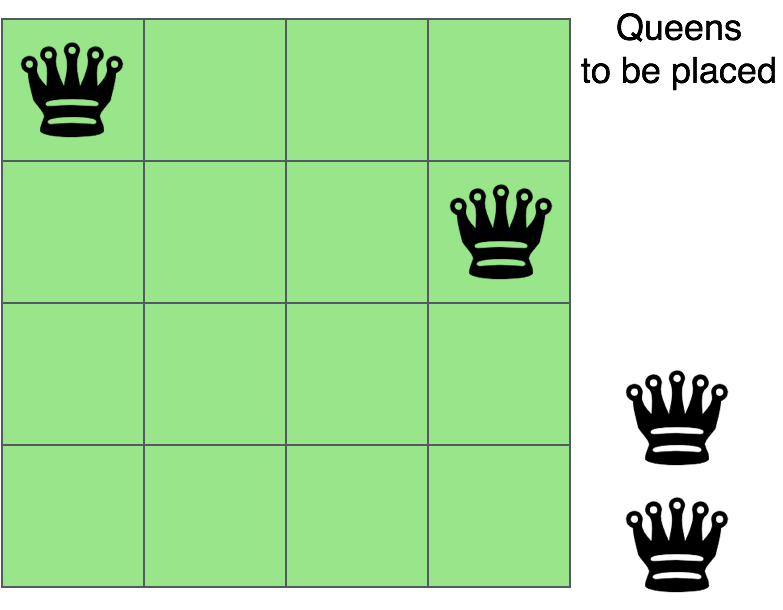

backtracking to change the position of previous queen

And now we will place the third queen again in a safe position until we find a solution.

Backtracking on N queen

We will continue this process and finally, we will get the solution as shown below.

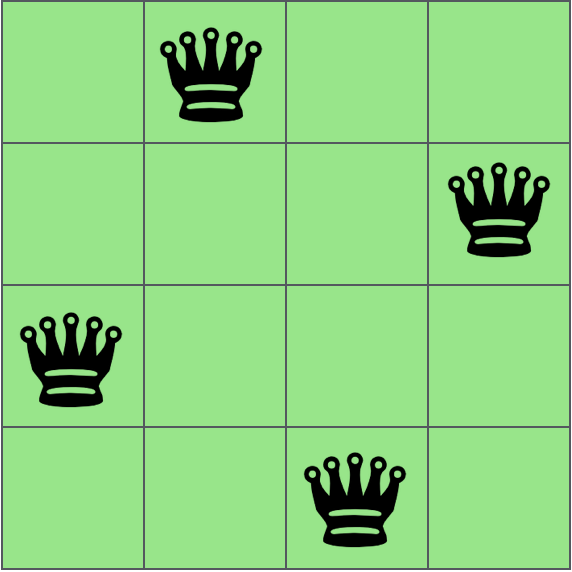

Final solution of backtracking

As now you have understood backtracking, let us now code the above problem of placing N queens on an NxN chessboard using the backtracking method.

Implementation

#include <stdio.h>

//Number of queens
int N;

//chessboard
int board[100][100];

//function to check if the cell is attacked or not
int is_attack(int i,int j)
{
    int k,l;
    //checking if there is a queen in row or column
    for(k=0;k<N;k++)
    {
        if((board[i][k] == 1) || (board[k][j] == 1))
            return 1;
    }
    //checking for diagonals
    for(k=0;k<N;k++)
    {
        for(l=0;l<N;l++)
        {
            if(((k+l) == (i+j)) || ((k-l) == (i-j)))
            {
                if(board[k][l] == 1)
                    return 1;
            }
        }
    }
    return 0;
}

int N_queen(int n)
{
    int i,j;
    //if n is 0, solution found
    if(n==0)
        return 1;
    for(i=0;i<N;i++)
    {
        for(j=0;j<N;j++)
        {
            //checking if we can place a queen here or not
            //queen will not be placed if the place is being attacked
            //or already occupied
            if((!is_attack(i,j)) && (board[i][j]!=1))
            {
                board[i][j] = 1;
                //recursion
                //wether we can put the next queen with this arrangment or not
                if(N_queen(n-1)==1)
                {
                    return 1;
                }
                board[i][j] = 0;
            }
        }
    }
    return 0;
}

int main()
{
    //taking the value of N
    printf("Enter the value of N for NxN chessboard\n");
    scanf("%d",&N);

    int i,j;
    //setting all elements to 0
    for(i=0;i<N;i++)
    {
        for(j=0;j<N;j++)
        {
            board[i][j]=0;
        }
    }
    //calling the function
    N_queen(N);
    //printing the matix
    for(i=0;i<N;i++)
    {
        for(j=0;j<N;j++)
            printf("%d\t",board[i][j]);
        printf("\n");
    }

}

Explanation of the code

is_attack(int i,int j) →  This is a function to check if the cell (i,j) is under attack by any other queen or not. We are just checking if there is any other queen in the row ‘i’ or column ‘j’. Then we are checking if there is any queen on the diagonal cells of the cell (i,j) or not. Any cell (k,l) will be diagonal to the cell (i,j) if k+l is equal to i+j or k-l is equal to i-j.

N_queen → This is the function where we are really implementing the backtracking algorithm.

if(n==0) → If there is no queen left, it means all queens are placed and we have got a solution.

if((!is_attack(i,j)) && (board[i][j]!=1)) → We are just checking if the cell is available to place a queen or not. is_attack function will check if the cell is under attack by any other queen and board[i][j]!=1 is making sure that the cell is vacant. If these conditions are met then we can put a queen in the cell – board[i][j] = 1.

if(N_queen(n-1)==1) → Now, we are calling the function again to place the remaining queens and this is where we are doing backtracking. If this function (for placing the remaining queen) is not true, then we are just changing our current move – board[i][j] = 0 and the loop will place the queen on some another position this time.
